- Rebar Straightening&Cutting MachineProfessional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.1. Worry-saving: The main components can last for ten years which almost cost you nothing for maintenance.2. Adopt the totally enclosed type case, featured with high security.3. The straightening motive power came from the large power motor which can ensure a long time stable operation.4. The installation of traction and straightening motive power adopt ADJUSTABLE STRUCTURE, which is easy to maintain.5. Adopt cartridge valve, featured with compact structure and convenient adjustment.6. The feed inlet adopt rotary scuff sleeve, featured with simple structure and easy change.
Contacts Us
E-mail: saler04@xuanhuamachinery68.com
Phone: +86 18037576821
WhatsApp: +86 18037576821
WeChat: +86 18037576821
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China

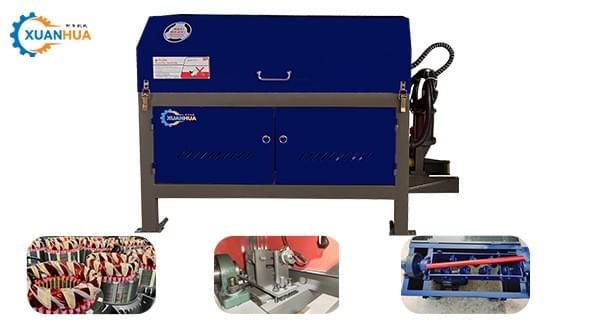

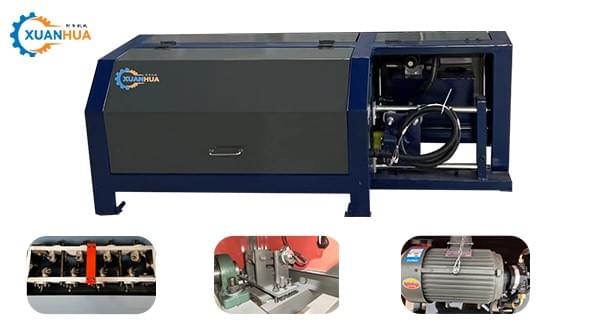

XT3-12
Working Capacity: Rounnd bar 3-12 mm
Working Capacity: Deformed bar 3-10 mm
Cutting Tolerance: ±8 mm
Motor Power: 3 kw
Straightening Speed: 18-40 m/min
Weight: 95 kg
Dimension: 1050*360*970 mm

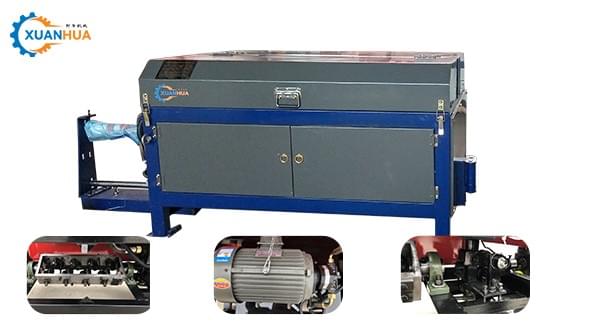

XT4-12
Working Capacity: Rounnd bar 4-12 mm
Working Capacity: Deformed bar 4-10 mm
Cutting Tolerance: ±8 mm
Motor Power: 5.5 kw
Straightening Speed: 30 m/min
Weight: 230 kg
Dimension: 1350*560*900 mm
XT4-14A
Working Capacity: Rounnd bar 4-14 mm
Working Capacity: Deformed bar 4-12 mm
Cutting Tolerance: ±8 mm
Motor Power: 7.5 kw
Straightening Speed: 38 m/min
Weight: 300 kg
Dimension: 1850*850*700 mm
XT4-14B
Working Capacity: Rounnd bar 4-14 mm
Working Capacity: Deformed bar 4-12 mm
Cutting Tolerance: ±8 mm
Motor Power: 9 kw
Straightening Speed: 40-65 m/min
Weight: 400 kg
Dimension: 1650*650*1150 mm

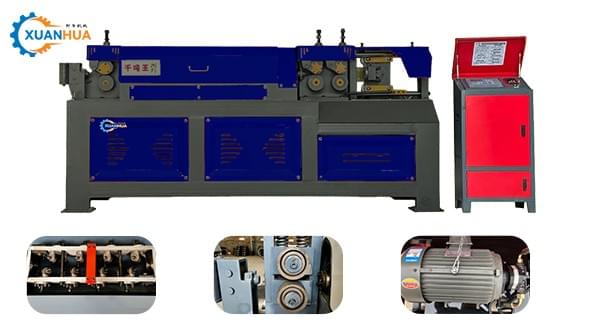

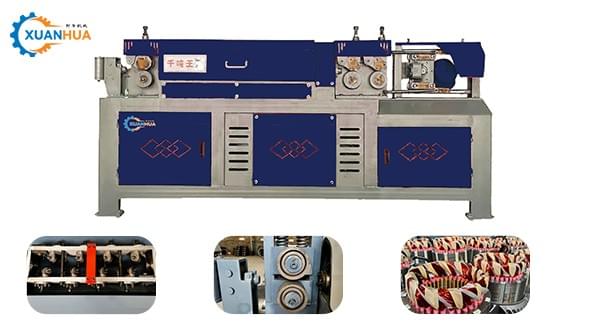

YXT4-14
Working Capacity: Rounnd bar 4-14 mm
Working Capacity: Deformed bar 4-12 mm
Cutting Tolerance: ±8 mm
Motor Power: 13 kw
Straightening Speed: 55 m/min
Weight: 850 kg
Dimension: 2500*650*1100 mm
YXT4-16
Working Capacity: Rounnd bar 4-16 mm
Working Capacity: Deformed bar 4-14 mm
Cutting Tolerance: ±8 mm
Motor Power: 20.5 kw
Straightening Speed: 0-70 m/min
Weight: 900 kg
Dimension: 2500*650*1100 mm

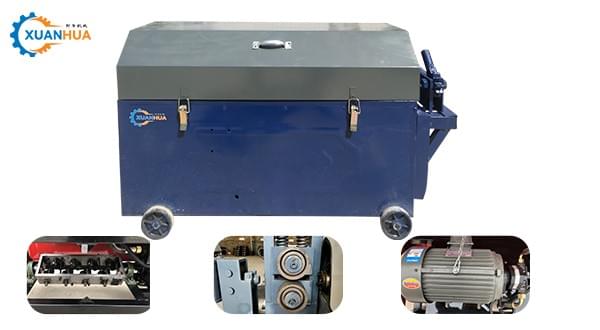

SGT6-10
Diameter: 6-10 mm
Power: 4 kw
Speed: 20 m/min
Reducer No.: ZQ250
Weight: 465 kg
Dimension: 750*1120*1250 mm
SGT6-12
Diameter: 6-12 mm
Power: 4/7.5 kw
Speed: 20 m/min
Reducer No.: ZQ250
Weight: 470/510 kg
Dimension: 750*1120*1250 mm
SGT6-14
Diameter: 6-14 mm
Power: 9 kw
Speed: 20 m/min
Reducer No.: ZQ300
Weight: 560 kg
Dimension: 750*1250*1300 mm
SGT8-16
Diameter: 8-16 mm
Power: 9 kw
Speed: 20 m/min
Reducer No.: ZQ300
Weight: 560 kg
Dimension: 750*1250*1300 mm
SGT14-25
Diameter: 14-25 mm
Power: 15 kw
Speed: 20 m/min
Reducer No.: ZQ400
Weight: 800 kg
Dimension: 1050*1350*1350 mm
SGT10-25
Diameter: 10-25 mm
Power: 15 kw
Speed: 20 m/min
Reducer No.: ZQ400
Weight: 890 kg
Dimension: 1050*1450*1350 mm
Advantage
According to your local market needs and budget, we can design the right rebar bending machine for you.

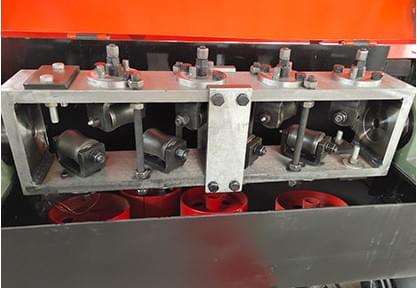

Blade
Material: Cr12
Process: Seamless Solder
Rebar straightener use of a more wear-resistant Cr12 material straightening frame, resolutely do not use inferior materials, to ensure that the machine can work for a long time. Efficiency higher.

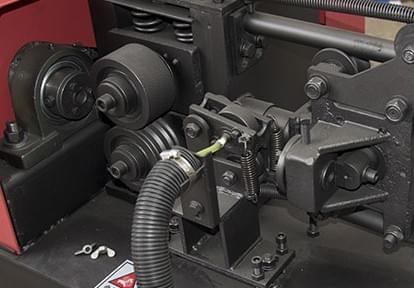

Straightening Roll
Material: Cr12
Structure: Integrated Casting
The straightening roll is a wearing part, but our steel bar straightening machine uses a more wear-resistant Cr12 material straightening wheel, which can keep working for a long time without replacement, reduce the use cost and improve the work efficiency.
Count Wheel
Material: Cr12MoV
Structure: Integrated Casting
Some models of straightening machines we use the Cr12MoV material count wheel, which is harder and more wear-resistant, so the counting is more accurate.

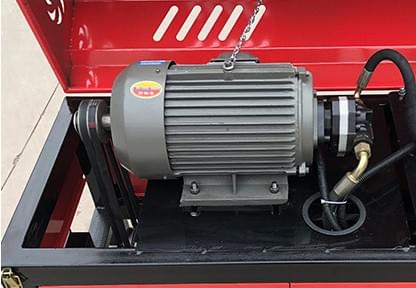

Eletric Motor
Material: Copper Wire
Standard: International Standard
The International standard copper wire motor provides strong power for machine. We accept voltage customization as 220/380/415/440V etc according to the requirements of different countries.Working Effect
Steel bar straightening and cutting machine is mainly used for straightening and fixed length cutting of rebar coil and steel wire rod coil. Widely used in housing, hydropower, bridges and other construction projects.
