Concrete Shotcrete Machine
The concrete shotcrete machine has high working efficiency and low cost. which can give you enough competitive advantage to attract customers.There are many types of shotcrete sprayers: Dry gunite machine(PZ-3, PZ-5, PZ-7), Wet shotcrete machinie (HSP-5, HSP-7). Also support customization, what you need! what we do!
Contacts Us
E-mail: saler04@xuanhuamachinery68.com
Phone: +86 18037576821
WhatsApp: +86 18037576821
WeChat: +86 18037576821
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China

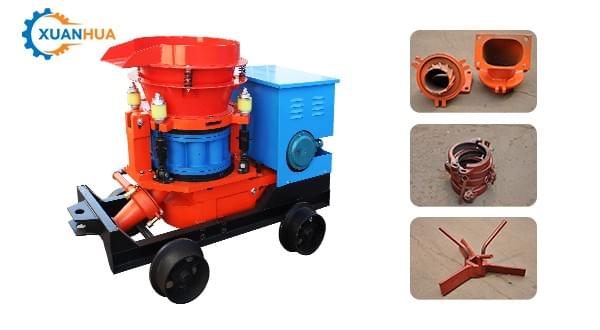

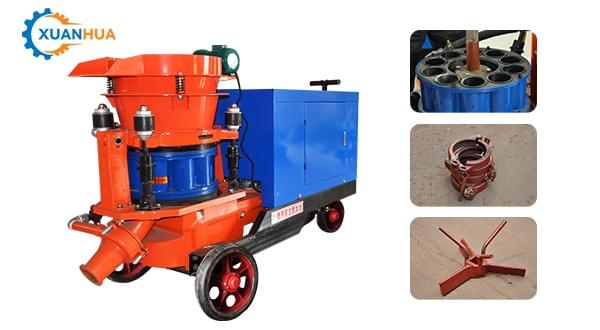

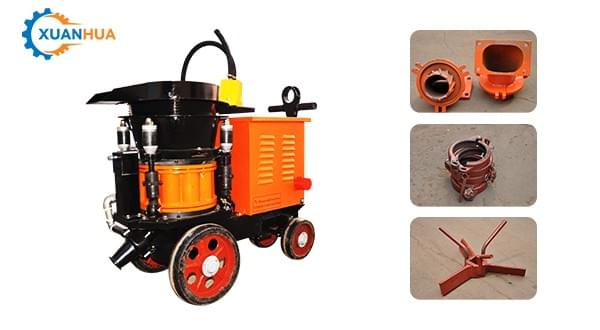

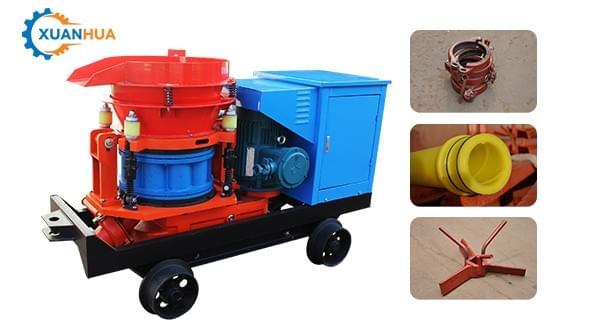

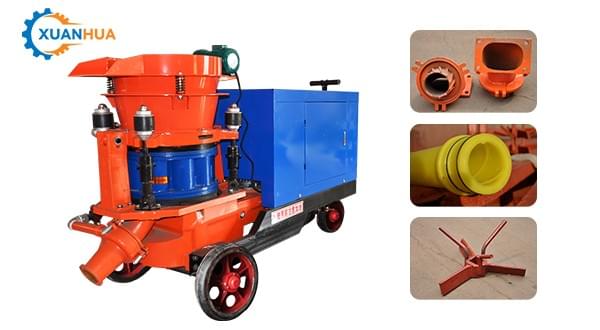

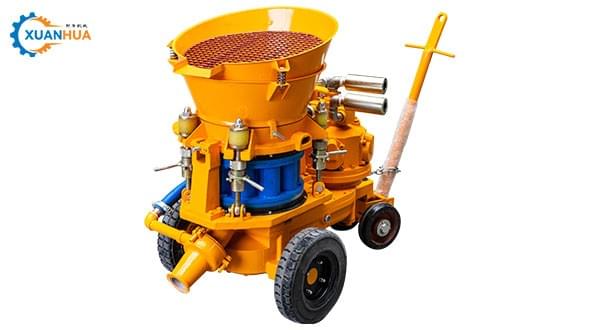

PZ3 Dry-Mix Gunite Machine
Output: 3 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.4-0.6 MPa
Engine Type: Electric Motor
Weight: 260 kg

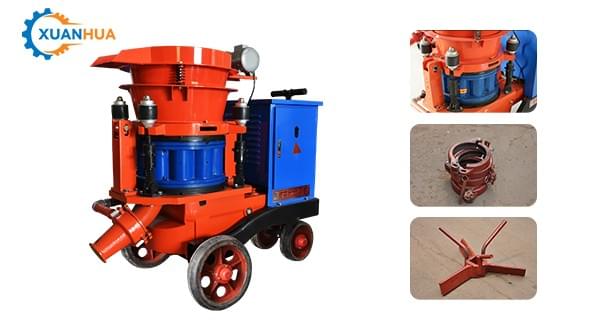

PZ5 Dry-Mix Gunite Machine
Output: 5 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.4-0.6 MPa
Engine Type: Electric Motor
Weight: 600 kg

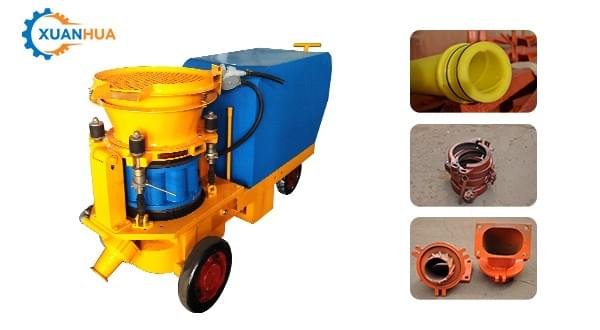

PZ5I Dry Explosion Proof
Output: 5 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.4-0.6 MPa
Engine Type: Electric Motor
Weight: 600 kg

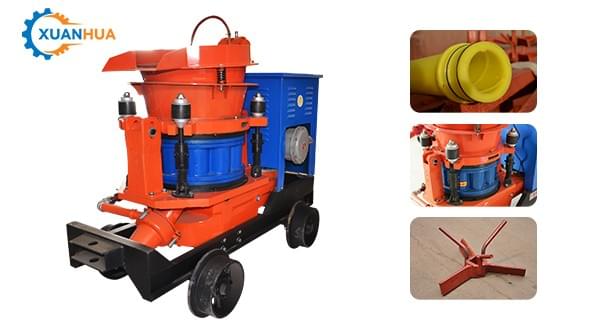

PZ5D Dry Diesel Engine
Output: 5 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.5 MPa
Engine Type: Diesel Engine
Weight: 720 kg

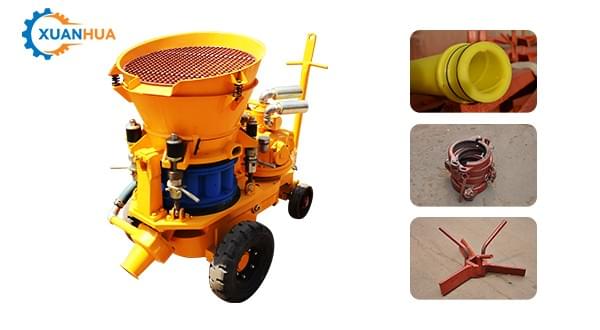

PZ5P Dry Air Motor
Output: 5 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.5 MPa
Engine Type: Air Motor
Weight: 720 kg
PZ7 Dry-Mix Gunite Machine
Output: 7 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.5 MPa
Engine Type: Electric Motor
Weight: 700 kg
PZ7I Dry Explosion Proof
Output: 7 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.5 MPa
Engine Type: Diesel Engine
Weight: 720 kg
PZ7D Dry Diesel Engine
Output: 7 m³/h
Max. Convery Distance:
Horizatial: 200 m
Vertical: 20 m
Max.Aggregate Size: Ø 20 mm
Operating Air Pressure: 0.5 MPa
Engine Type: Diesel Engine
Weight: 720 kg
HSP5 Wet Shotcrete Machine
Output: 5 m³/h
Max. Convery Distance:
Horizatial: 30 m
Vertical: 20 m
Max.Aggregate Size: Ø 15 mm
Operating Air Pressure: 0.4-0.6 MPa
Motor Power: 5.5 kw
Weight: 800 kg
PS5I Wet Explosion Proof
Output: 5 m³/h
Max. Convery Distance:
Horizatial: 30 m
Vertical: 20 m
Max.Aggregate Size: Ø 15 mm
Operating Air Pressure: 0.4-0.6 MPa
Motor Power: 5.5 kw
Weight: 800 kg
HSP7 Wet Shotcrete Machine
Output: 7 m³/h
Max. Convery Distance:
Horizatial: 30 m
Vertical: 20 m
Max.Aggregate Size: Ø 15 mm
Operating Air Pressure: 0.4-0.6 MPa
Motor Power: 5.5 kw
Weight: 900 kg
PS7I Wet Explosion Proof
Output: 7 m³/h
Max. Convery Distance:
Horizatial: 30 m
Vertical: 20 m
Max.Aggregate Size: Ø 15 mm
Operating Air Pressure: 0.4-0.6 MPa
Motor Power: 5.5 kw
Weight: 900 kg
Advantage
According to your local market needs and budget, we can design the right concrete spraying machine for you.

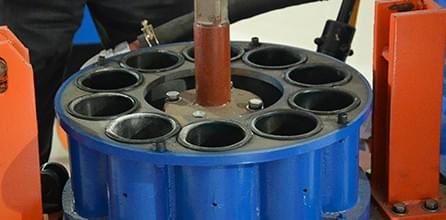

Rotor
Concrete shotcreting machine adopts straight-through rotor design, non-stick material cavity, smooth discharge, high efficiency and time saving

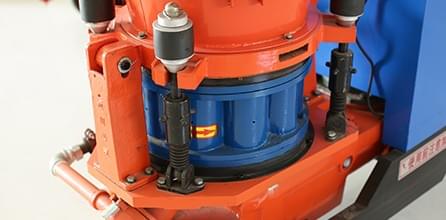

Clamping Device
Four-point elastic compensation compaction, good sealing effect, less dust beside the machine and long service life of wearing parts.
Cyclone
Low-pressure high-speed vortex air flow transportation is adopted to overcome the problems of bonding, pipe blocking and pulse force in material transportation, and the feeding is uniform, continuous and stable.

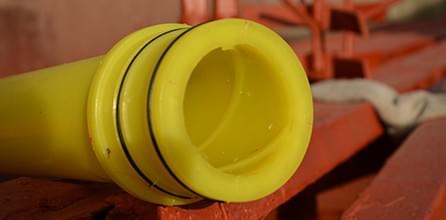

Shotcrete Nozzle
The new nozzle improves the spraying effect, has less rebound and high spray layer quality. The nozzle material of the shotcrete equipment is upgraded and the service life is longer.
Working Effect
The gunite equipment is widely used in the protection work of houses, roads, tunnels, culverts, subways, bridges, coal mines and other projects as well as the spraying and repairing of industrial kilns.
