- Rebar Cutting MachineSteel bar cutting machine is one of the indispensable equipment for reinforcement processing. It is mainly used for cutting the length of steel bars in buildings, bridges, tunnels, power stations and large water conservancy projects. Compared with other cutting equipment, the steel cutting machine has the characteristics of light weight, low energy consumption, reliable operation and high efficiency. Therefore, it has been widely used in mechanical processing and small rolling mill in recent years, and has played an important role in various fields of national economic construction.
Contacts Us
E-mail: saler04@xuanhuamachinery68.com
Phone: +86 18037576821
WhatsApp: +86 18037576821
WeChat: +86 18037576821
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China

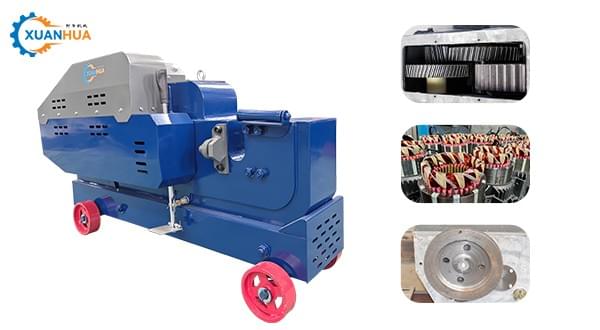

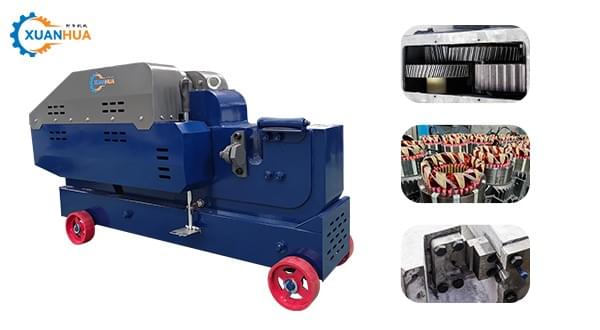

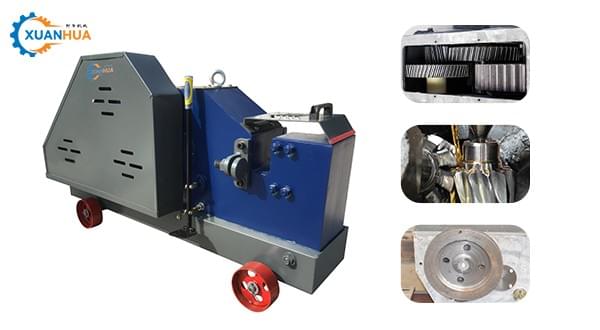

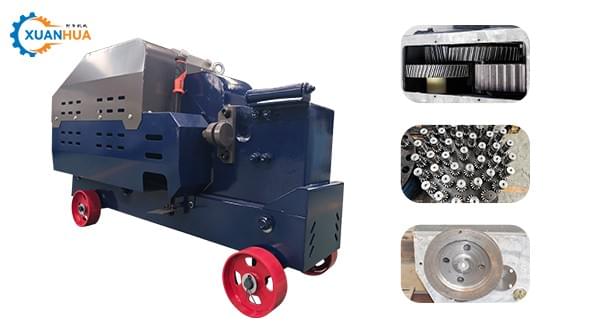

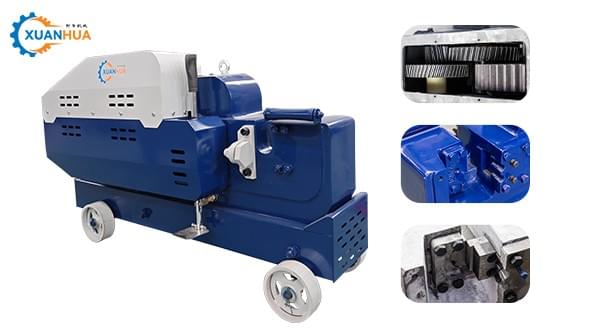

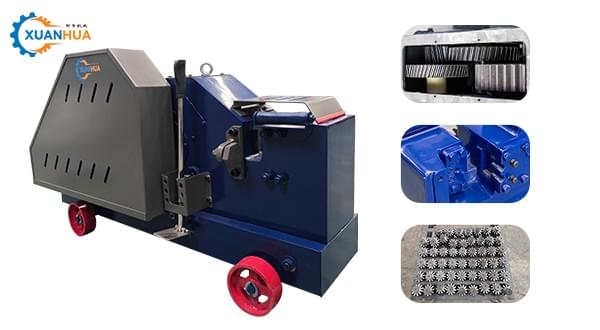

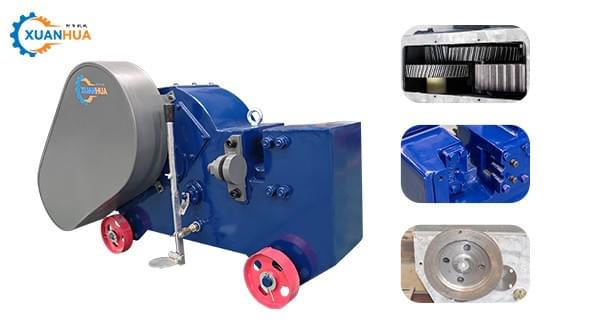

XC28
Rounnd bar working capacity: 6-28 mm
Deformed bar working capacity: 6-25 mm
Cutttng frequency: 32 times/min
Motor power: 3 kw
Motor speed: 2880 r/min
Weight: 300 kg
Dimension: 1250*450*720 mm
XC40
Rounnd bar working capacity: 6-40 mm
Deformed bar working capacity: 6-32 mm
Cutttng frequency: 32 times/min
Motor power: 3 kw
Motor speed: 2880 r/min
Weight: 365 kg
Dimension: 1310*540*740 mm
XC40Ultra
Rounnd bar working capacity: 6-36 mm
Deformed bar working capacity: 6-32 mm
Cutttng frequency: 32 times/min
Motor power: 3 kw
Motor speed: 2880 r/min
Weight: 310 kg
Dimension: 1200*460*720 mm
XC42
Rounnd bar working capacity: 6-40 mm
Deformed bar working capacity: 6-32 mm
Cutttng frequency: 32 times/min
Motor power: 3 kw
Motor speed: 2880 r/min
Weight: 360 kg
Dimension: 1310*550*740 mm
XC46Pro
Rounnd bar working capacity: 6-40 mm
Deformed bar working capacity: 6-36 mm
Cutttng frequency: 28 times/min
Motor power: 3 kw
Motor speed: 2880 r/min
Weight: 391 kg
Dimension: 1280*480*780 mm
XC50
Rounnd bar working capacity: 6-42 mm
Deformed bar working capacity: 6-36 mm
Cutttng frequency: 28 times/min
Motor power: 4 kw
Motor speed: 2880 r/min
Weight: 508 kg
Dimension: 1460*575*850 mm
XC50Pro
Rounnd bar working capacity: 6-42 mm
Deformed bar working capacity: 6-36 mm
Cutttng frequency: 28 times/min
Motor power: 4 kw
Motor speed: 2880 r/min
Weight: 525 kg
Dimension: 1310*540*740 mm
XC60
Rounnd bar working capacity: 6-50 mm
Deformed bar working capacity: 6-40 mm
Cutttng frequency: 32 times/min
Motor power: 4/5.5 kw
Motor speed: 2880 r/min
Weight: 600 kg
Dimension: 1310*700*780 mm

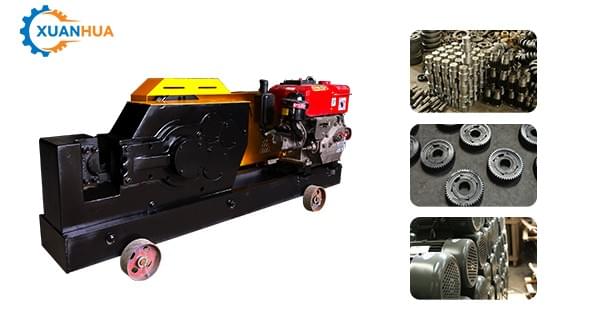

XC40/50 Diesel
Rounnd bar working capacity: 6-40/50 mm
Deformed bar working capacity: 6-32/40 mm
Cutttng frequency: 32 times/min
Motor power: 12/15 HP
Motor speed: 2880 r/min
Weight: 450 kg
Dimension: 1250*500*730 mm

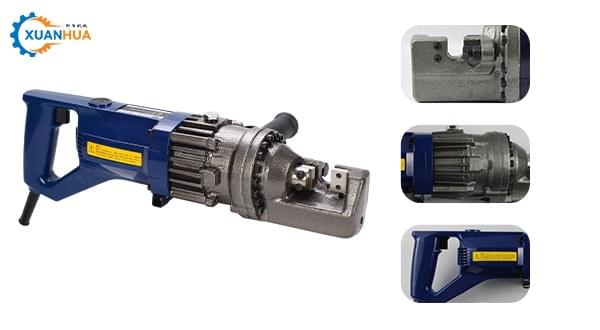

RC16
Cutting diameter: 4-16 mm
Voltage: 220/110 V
Cutting Speed: 2.5-3 S
Power: 850/900 w
G.W./N.W.: 13/8 kg
Dimension: 510*230*150 mm
RC20
Cutting diameter: 4-20 mm
Voltage: 220/110 V
Cutting Speed: 3-3.5 S
Power: 950/1350 w
G.W./N.W.: 18.5/13 kg
Dimension: 480*195*280 mm
RC22
Cutting diameter: 4-22 mm
Voltage: 220/110 V
Cutting Speed: 3.5-4.5 S
Power: 1000/1350 w
G.W./N.W.: 21.5/15 kg
Dimension: 485*190*330 mm
RC25
Cutting diameter: 4-25 mm
Voltage: 220/110 V
Cutting Speed: 5 S
Power: 1600/1700 w
G.W./N.W.: 32/24.5 kg
Dimension: 560*230*340 mm
RC32
Cutting diameter: 4-32 mm
Voltage: 220/110 V
Cutting Speed: 6-7 S
Power: 2900/3000 w
G.W./N.W.: 40/31 kg
Dimension: 630*240*350 mm

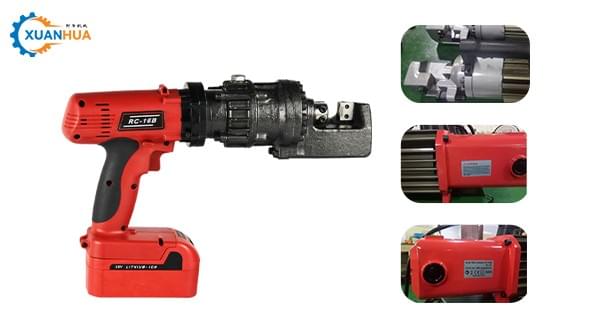

RC16B
Cutting diameter: 4-16 mm
Voltage: 18 V
Cutting Speed: 4.5-5 S
Power: 140 w
G.W./N.W.: 14/6.5 kg
Dimension: 550*430*150 mm
RC20B
Cutting diameter: 4-20 mm
Voltage: 18 V
Cutting Speed: 4.5-5 S
Power: 140 w
G.W./N.W.: 17.8/9.8 kg
Dimension: 550*430*150 mm

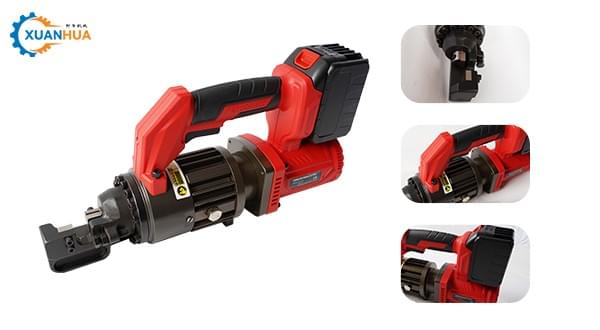

PC16B
Cutting diameter: 4-16 mm
Charging time: 180min
Cutting Speed: 3 S
G.W./N.W.: 12.4/6.8 kg
Dimension: 550*230*280 mm
PC20B
Cutting diameter: 4-20 mm
Charging time: 180min
Cutting Speed: 3.5 S
G.W./N.W.: 13.7/8 kg
Dimension: 550*230*280 mm
Advantage
According to your local market needs and budget, we can design the right rebar bending machine for you.

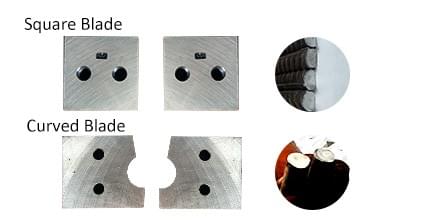

Blade
Shape: Square / Round
Material: 55SiCr(Forged)
The blade of bar cutter machine is made of 55SiCr special wear resistant steel for a longer service life. The blade has a two-hole design and is more durable and can be recycling quartic used.

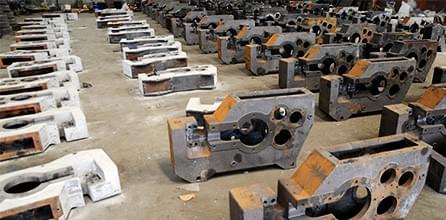

Gear Shell
Material: Iron Casting
Structure: Integrated Casting
We adopt integrated iron casting workship which can ensure machine's performance strong and steady.The iron casing shell we installed with a weight of 160kg , 190kg and 230kg well match GQ40,GQ42 and GQ50 accordingly.We guarantee you lifelong use without cracking.

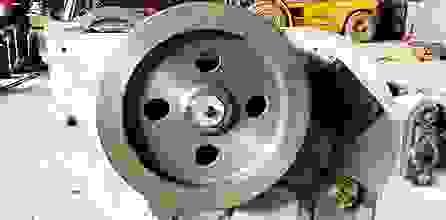

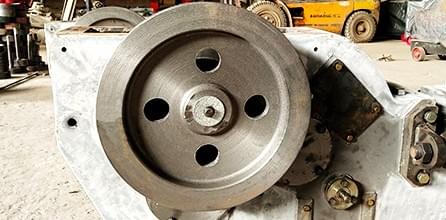

Belt Pulley
Material: Iron Casting
Structure: Integrated Casting
The Belt pulley installed on rebar cutting machines is heavy duty. it offer strong power and ensure efficient working performance.

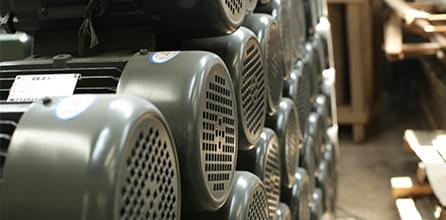

Eletric Motor
Material: Copper Wire
Standard: International Standard
The International standard copper wire motor provides strong power for machine. We accept voltage customization as 220/380/415/440V etc according to the requirements of different countries.Working Effect

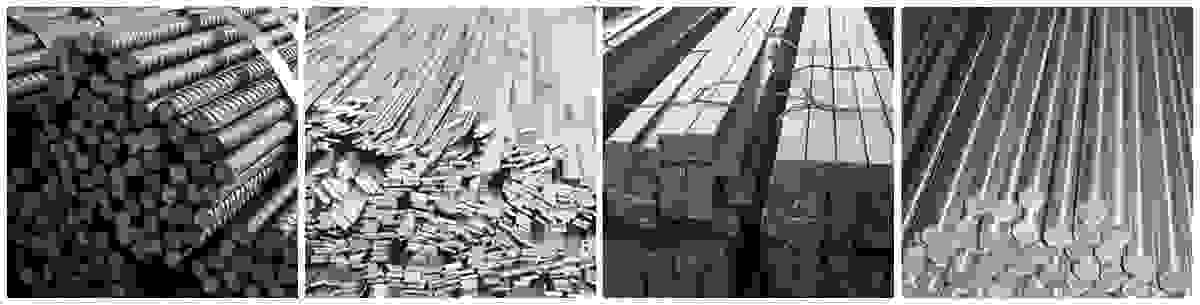

The rebar cutting machine is mainly used for cutting deformed bar, carbon bar, square bar and flat bar in the construction of roads, houses, tunnels and bridges.
