Grouting Pump Injection Pump
The grouting machine can transport cement slurry, mortar and mud, with high working efficiency and low cost. There are many types of grouting machines: HJB, ZBQ-9, HJZB, SUB8.0, SW60-5. Also support customization, what do you need! what we do!
Contacts Us
E-mail: saler04@xuanhuamachinery68.com
Phone: +86 18037576821
WhatsApp: +86 18037576821
WeChat: +86 18037576821
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China
HJB3 Cement Pump
Working Principle： Piston
Output： 3 m³/h
Operating Pressure: 1.5 MPa
Motor Power: 4 kw
Weight: 250 kg
HJB6 Cement Pump
Working Principle： Piston
Output： 6 m³/h
Operating Pressure: 1.5-3 MPa
Motor Power: 5.5 kw
Weight: 320 kg
HJB2 Cement Pump
Working Principle： Extrusion
Output： 2 m³/h
Operating Pressure: 3 MPa
Motor Power: 2.2/2.8 kw
Weight: 260 kg
HJB5 Cement Pump
Working Principle： Extrusion
Output： 5-6 m³/h
Operating Pressure: 3 MPa
Motor Power: 4 kw
Weight: 500 kg
ZBQ9 Cement Pump
Working Principle： Pneumatic
Output： 5-6 m³/h
Operating Pressure: 3 MPa
Motor Power: /
Weight: 60 kg
HJZB Cement Pump
Working Principle： Hydraulic
Output： 4 m³/h
Operating Pressure: 3-5 MPa
Motor Power: 9 kw
Weight: 500 kg
BW60-5 Mortar Pump
Output： 3.6 m³/h
Operating Pressure: 5 MPa
Motor Power: 7.5 kw
Weight: 180 kg
Dimension: 1600*600*800 mm
SUB8.0 Mortar Pump
Output： 8 m³/h
Operating Pressure: 8 MPa
Motor Power: 11 kw
Weight: 600 kg
Dimension: 1400*900*100 mm

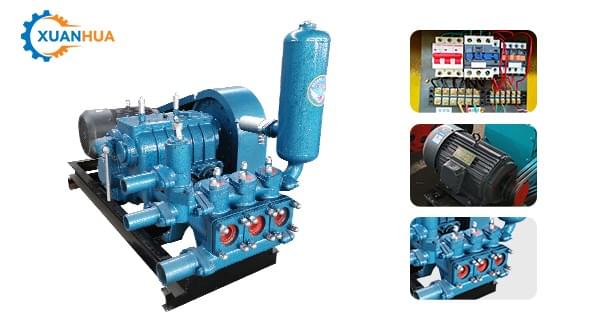

BW250 Mud Pump
Cylinder Diameter: 80 mm
Stroke per Min.: 200/116/72/42 min
Flow Capacity: 250/145/90/52 L/min
Pressure: 2.5/4.5/6 Mpa
Power: 15 kw

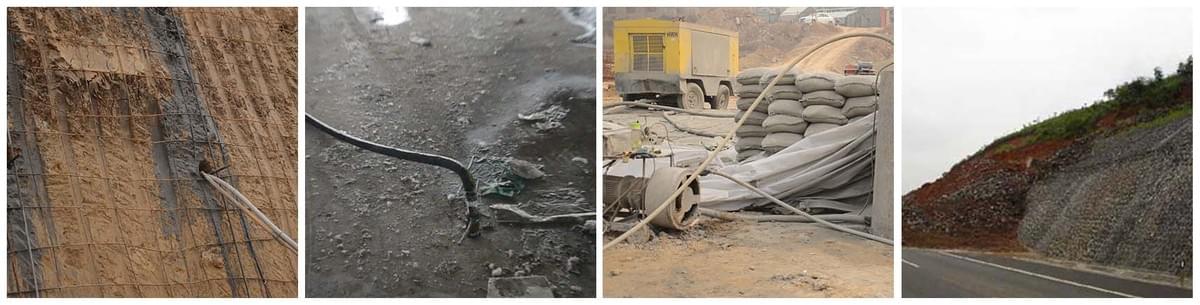

Working Effect
The gunite equipment is widely used in the protection work of houses, roads, tunnels, culverts, subways, bridges, coal mines and other projects as well as the spraying and repairing of industrial kilns.
