Concrete Grinding Machine
The walk behind cement grinder machine has high working efficiency and low cost. which can give you enough competitive advantage to attract customers.There are many types of cement grinder machines: G-300/330A/330B/400, G-600A/600B, G-630/700.Also support customization, what do you need! what we do!
Contacts Us
E-mail: saler04@xuanhuamachinery68.com
Phone: +86 18037576821
WhatsApp: +86 18035756821
WeChat: +86 18037576821
ADD: Unit 1, Building 1, West 5th Street, Hanghai East Road, Zhengzhou Area, Henan China

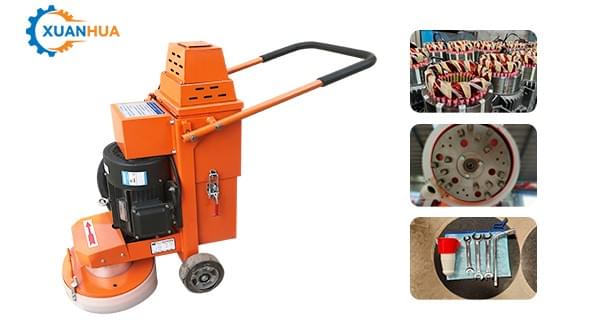

XH-300
Working Width: 300 mm
Rated Voltage: 380/200 v
Vacuum Motor: 1200 w
Working Motor: 4 kw
Motor Speed: 1445 r/min
Dust Box Capacity: 24 L
Weight: 145 kg
XH-330
Material: Stainless Steel
Handle Length:1.8 m*3
Blade Length: 120 cm
Blade Width: 20 cm
Weight: 9 kg

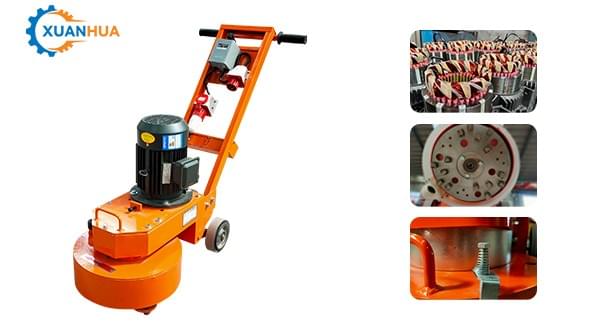

XH-400
Working Width: 400 mm
Rated Voltage: 380/200 v
Working Motor: 3/4 kw
Motor Speed: 1445 r/min
Weight: 80 kg
XH-600A
Material: Aluminum-magnesium Alloy
Handle Length:1.8 m*3
Blade Length: 120/150/180 cm
Blade Width: 20 cm
Weight: 10/11/12 kg

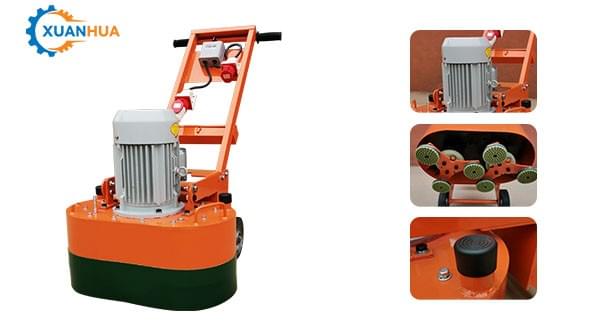

XH-600B
Working Width: 600 mm
Rated Voltage: 380 v
Working Motor: 4 kw
Motor Speed: 1445 r/min
Weight: 120 kg
XH-630A
Working Width: 630*630 mm
Rated Voltage: 380 v
OperatingFrequency: 60 HZ
Motor Power: 7.5 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 40L
Balance weight: 25 kg
Number of grinding heads: 12*100 mm
Weight: 253 kg
XH-630B
Working Width: 630*630 mm
Rated Voltage: 380 v
OperatingFrequency: 50 HZ
Motor Power: 7.5 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 40L
Number of grinding heads: 12*100 mm
Weight: 300 kg
XH-700
Working Width: 700*700 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 11/15 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 40L
Balance weight: 20 kg
Number of grinding heads: 12*100 mm
Weight: 304/320 kg
XH-720A
Working Width: 720*720 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 15 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 60L
Balance weight: 25 kg
Number of grinding heads: 12*100 mm
Weight: 392 kg
XH-720B
Working Width: 720*720 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 15 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 60L
Balance weight: 25 kg
Number of grinding heads: 12*100 mm
Weight: 385 kg
XH-730
Working Width: 730*730 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 15 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 60L
Balance weight: 40 kg
Number of grinding heads: 12*100 mm
Weight: 502 kg
XH-750
Working Width: 750*750 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 15 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 60L
Balance weight: 25 kg
Number of grinding heads: 12*100 mm
Weight: 475 kg
XH-800
Working Width: 800*800 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 15 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 60L
Balance weight: 50kg
Number of grinding heads: 12*100 mm
Weight: 535 kg
XH-850A
Working Width: 850*850 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 18.5 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 60L
Balance weight: 50kg
Number of grinding heads: 12*100 mm
Weight: 624 kg
XH-850B
Working Width: 850*850 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 18.5 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 60L
Balance weight: 50kg
Number of grinding heads: 12*100 mm
Weight: 644 kg
XH-900
Working Width: 900*900 mm
Rated Voltage: 380 v
OperatingFrequency: 50HZ
Motor Power: 18.5 kw
Motor Speed: 0-1800 r/min
Water tank capacity: 40L
Balance weight: 50kg
Number of grinding heads: 24*100 mm
Weight: 671 kg
XH-1680
Working Width: 1680 mm
Motor Power: 18.5 kw*2
Frequency converter: 22.kw*2
Drive power: 1.5 kw*2
Motor speed: 0-800 r/min
Water tank capacity: 50 L
Number of grinding heads: 24*100 mm
Weight: 1400 kg
XH-520
Operating frequency: 50 HZ
Motor power: 18.5kw
Working voltage: 380v
Frequency control: 0-2900 r/min
Working width: 520 mm
Weight: 258 kg
XH-650A
Motor speed: 0-1800r/min
Operating frequency: 50 HZ
Motor power: 18.5kw
Working voltage: 380v
Frequency converter: 22 kw
Drive power: 800 w
Working width: 650 mm
Weight: 348 kg
XH-650B
Motor speed: 0-1800r/min
Operating frequency: 50 HZ
Motor power: 18.5kw
Working voltage: 380v
Frequency converter: 22 kw
Drive power: 750 w*2
Working width: 650 mm
Weight: 394 kg
XH-20inches
Working voltage: 220 V
Motor Power: 4 kw
Variable frequency power: 4 kw
Machine RPM: 0-1880 rpm
Grinding disc diameter: 500 mm
Weight: 117kg
XH-27inches
Working voltage: 380 V
Motor Power: 40 hp
Variable frequency power: 7.5 kw
Machine RPM: 0-1880 rpm
Grinding disc diameter: 680 mm
Weight: 158kg
Advantage
According to your local market needs and budget, we can design the right concrete floor grinder machine for you.

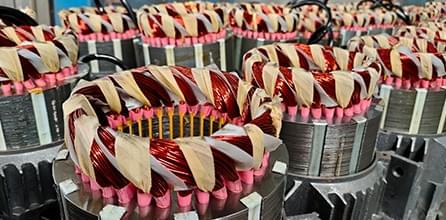

Motor
The customizable motor of the floor grinding machine adopts the national standard 4KW pure copper coil motor, which has high power, high working efficiency, fast heat dissipation, stable performance, and long service life. It fully creates a silent power world and is truly silent and undisturbed.

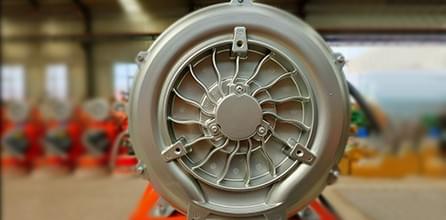

Dust Suction Fan
The aluminum alloy body is built for easy heat dissipation, double-layer filtration, and an independent dust suction system, which can achieve dust-free polishing, long-lasting operation, high efficiency and environmental protection.

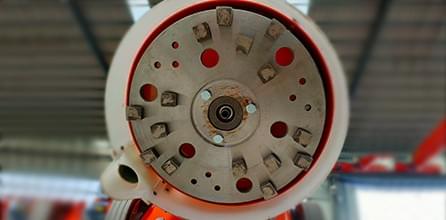

Multifunctional Grinding Disc
The concrete floor grinder is suitable for various construction sites, the grinding disc and the grinding head can be replaced according to different grinding needs, the installation holes are flexible, the grinding speed is fast, and the efficiency is high.

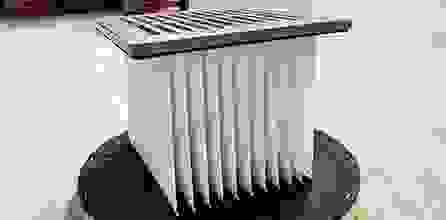

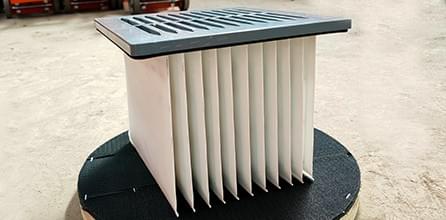

Filter
Dust-removing air filter element adopts thickened non-woven fabric material to filter 90% of dust and is equipped with a large-capacity ash hopper to make workers work healthier and more efficiently.
Working Effect
Concrete floor grinding machine is widely used in leveling, polishing and polishing of concrete floor, epoxy floor, acrylic floor, curing floor, terrazzo floor and gravel ground.
